Glass walls have become a staple in modern office design. They offer the visual openness of an open-concept space while still providing the separation needed for privacy and focus.
But if you’re considering adding glass partitions to your office, it’s important to understand the process. Knowing how to install glass walls correctly can save you time, money, and frustration.
Whether you’re looking at the Sunline Sunergy 800 Series or leaning more toward frameless options like the Synergy 500, this guide walks you through exactly how to install glass walls in your office, from pre-planning to final adjustments.
Tools and Materials Needed for Installing Glass Walls
It doesn’t matter whether you’re tackling glass wall installation yourself or overseeing a team; having the right tools on hand is non-negotiable. We’re dealing with precision components, heavy glass panels, and fine tolerances.
Here’s what needs to be in your kit:
- Ladder or scaffolding: Especially important for high wall installations.
- Level and Laser Measure: Accuracy is everything when installing glass walls. A standard bubble level helps, but a laser level gives you more confidence when aligning top tracks and confirming wall plumbness across longer distances.
- Glass Suction Lifters: Even smaller panels can be heavy and awkward to maneuver without assistance. Suction lifters enable the safe handling of glass, eliminating fingerprints and preventing accidental chipping, while also reducing the risk of dropping a panel during placement.
- Chop saw with metal cutting blade: For cutting aluminum channels and support structures to precise lengths.
- Drill and Concealed Fasteners: Most modern glass wall systems use hidden fasteners to maintain a clean, minimalist look. Make sure your drill is equipped with torque control and that you’re using fasteners specifically designed for your wall system.
- Gasket Materials or Sealants: Most systems include rubber gaskets or perimeter seals to reduce sound transfer and protect against temperature fluctuations. Don’t skip this step; it’s critical for long-term performance.
- Manufacturer-Specific Components: No two systems are alike. It makes no difference if you’re working with the Clover High Wall or another setup; always follow the system guide to the letter.
The Synergy 500 installation book is an excellent example of the kind of details you’ll need to have on hand, as well as other relevant information on how to install glass walls.
Step 1: Measure the Space Accurately
Before ordering or installing anything, take the time to measure the space thoroughly. This step is non-negotiable. Incorrect room dimensions can throw off everything from top track lengths to glass panel sizing.
What to measure:
- Ceiling height (check in multiple spots — ceilings aren’t always level)
- Floor slope (even small inconsistencies affect leveling)
- Wall-to-wall distances and alcove depths
- Obstructions (sprinkler heads, HVAC vents, uneven trim)

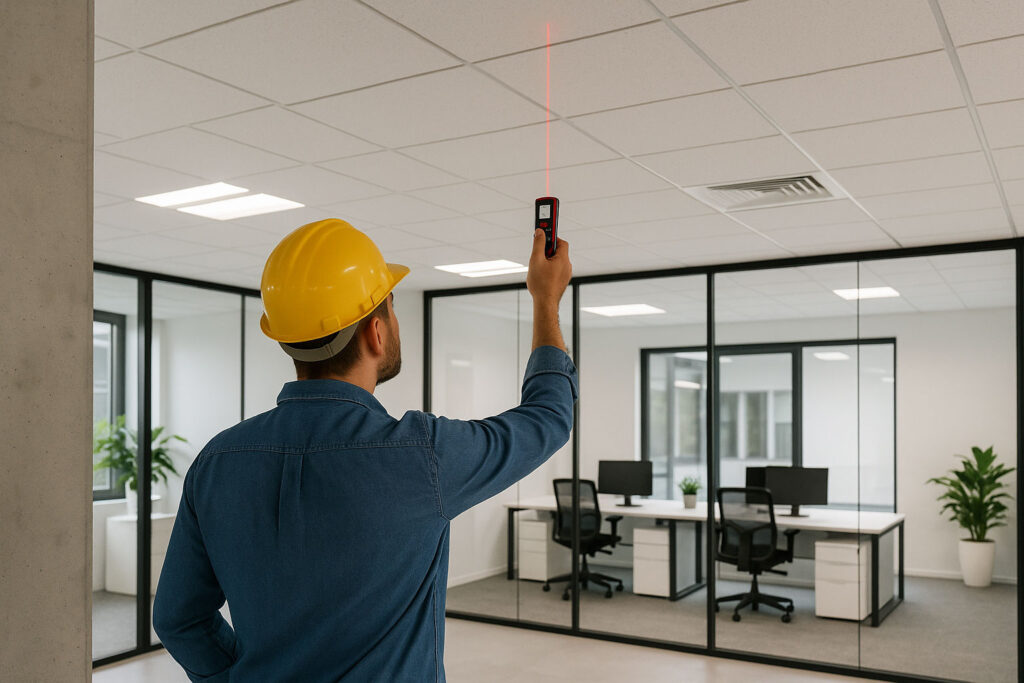

Don’t just eyeball it. Use a laser measure to get precise readings and document everything. If your space isn’t perfectly square or level, that needs to be accounted for before placing an order.
Step 2: Prep the Site
Once everything is measured and ordered, prepare your site so it’s installation-ready. This involves checking both the structure and surfaces where the system will be mounted.
Make sure:
- The floor is level and free from debris
- The ceiling is structurally sound and can support top tracks
- Existing walls and surfaces are finished and won’t shift after installation
- There’s clear access to bring in large glass panels safely
If anything feels questionable, wait. Installing glass on an unstable surface almost always leads to problems down the road.
Step 3: Install the Frame and Support Components
This is where the install process kicks off. Most glass wall systems start with:
- Top track installation: Secure and level the upper channels that carry the glass or panel load.
- Bottom tracks or thresholds (if applicable)
- Side channels on adjacent walls
Framed systems may require more bracing or anchoring, whereas frameless systems, such as Synergy 500, rely on precise hardware placement and subtle support channels to maintain a sleek appearance.
Take your time here — tracks need to be dead straight and completely level, or the entire system will suffer.
Step 4: Set Glass or Panel Inserts
With the frame in place, you can now set the panels. If you’re using a mixed system, you might have a combination of glass, fabric, and laminate panels to work with.
As you set each panel:
- Use suction lifters for safe handling
- Confirm each panel is level and flush before anchoring
- Make sure the gasket or seal material is installed properly to avoid vibration or sound bleed
- Don’t overtighten fasteners — it can crack glass or bend frame elements
Install doors last, whether they are sliding or swing-style, to allow for final hardware adjustments.
Step 5: Align, Adjust, and Finalize
Once panels and doors are in place, take the time to double-check every detail.
- Ensure the door swings or slides smoothly and quietly
- Verify all panels are aligned, level, and secure
- Hide all visible hardware (especially on frameless systems)
- Inspect seal placement for any gaps or misalignment
This is also your opportunity to test the acoustic performance and structural stability before finalizing the build.
Bonus Tip: Consider the Flow of the Entire Space
Installing a glass wall is so much more than just putting up panels; you need to consider how people move and work within the space. Check out our Office Design Guide or our favorite office planning tools to make sure your glass layout works with your team’s daily flow.
If you’re also incorporating cubicles, the layout becomes even more important.
Why the Installation Process Matters
Proper installation ensures soundproofing, thermal control, and the longevity of the entire system. A rushed or uneven installation leads to stress points in the glass, door misalignments, and long-term maintenance issues.If you’re still comparing different types of systems, this glass wall system comparison breaks down what makes each one unique and which one suits your project best.
Get the Look (and the Function) You’re After
Glass walls are a solid investment in both style and functionality. From outfitting a brand-new space to upgrading a dated office, the right system, properly installed, gives your team privacy, light, and openness all at once.
